LMS700KF25-0 7.0 inch Samsung LCD Panel TN LCM 800×480 350nits WLED TTL 40pins

Product Categories
N&S ELECTRONIC CO., LIMITED
Contact Now

LMS700KF25-0 7.0 inch Samsung LCD Panel TN LCM 800×480 350nits WLED TTL 40pins

Brand Name : Samsung

Model Number : LMS700KF25-0

Certification : ISO9001

Place of Origin : Japan

MOQ : 1

Payment Terms : T/T, Western Union,paypal

Supply Ability : 100 PCS / DAY

Delivery Time : 2-3 working days after payment confirmation

Packaging Details : Antistatic bag, Bubble Bag, Foam Box and Carton Box.

Series : LMS700KF

Keywords Desc. : Samsung 7.0" TN LCM 800×480 350nits WLED TTL 40pins

Product Class : Graphic LCD Display

Product Tags : Color TFT-LCD,Transflective LCD,Sunlight Readable LCD

Application : MID UMPC,MP4 PMP

Panel Type : a-Si TFT-LCD

Panel Composition : LCM

Panel Size : 7.0"

Resolution : 800×480

Aspect Ratio : 15:9 (W:H)

Form Factor : Flat Rectangle Display

Orientation : Landscape type

Active Area : 152.4 (W) × 91.44 (H) mm (A.A)

Viewing Area : 155.4 (W) × 94.44 (H) mm (V.A)

Outline Dimension : 163.2 (W) × 104 (H) mm

Max. Depth : 3.6 mm

Weight : 115g (Typ.)

LC Family : TN

Polarizer : TMR

Brightness : 350 (Typ.)

Contact Now

Samsung LMS700KF25-0 7.0 inch TN LCM 800×480 350nits WLED TTL 40pins

LMS700KF25-0 Main Parameters

Panel Brand :SAMSUNG SMD
Panel Model :LMS700KF25-0
Panel Type :a-Si TFT-LCD , LCM
Panel Size :7.0 inch
Resolution :800(RGB)×480 , WVGA
Display Mode :TN, Normally White, TMR
Active Area :152.4×91.44 mm
Outline :163.2×104×3.6 mm
Brightness :350 cd/m2 (Typ.)
Contrast Ratio :700 : 1 (Typ.)
Display Colors :16.2M (6-bit + FRC)
Response Time :16 (Typ.)(Tr+Td)
Viewing Angle :70/70/70/70 (Typ.)(CR≥10) (L/R/U/D)
Frequency :60Hz
Lamp Type :8S3P WLED
Signal Interface :CMOS (1 ch, 8-bit) , 40 pins

SAMSUNG SMD LMS700KF25-0 Mechanical Features

Dot Resolution :800(RGB)×480 (WVGA)
Pixel Configuration :RGB Vertical Stripe
Pixel Density :133 PPI
Aspect Ratio :15:9 (H:V)
Form Factor :Flat Rectangle Display
Dot Pitch :0.0635×0.1905 mm (H×V)
Pixel Pitch :0.1905×0.1905 mm (H×V)
Weight :115g (Typ.)
Active Area :152.4×91.44 mm (H×V)
Bezel Area :155.4×94.44 mm (H×V)
Outline Dimension :163.2×104 mm (H×V)
Outline Depth :3.4±0.2 mm
Holes & Brackets :Without
Landscape or Portrait :Landscape type


FAQ
Q1: What's price?
A1: We provide reasonable price and recommend suitable batteries to our customers.
Q2: What's delivery time?
A2: The delivery time is normally 1-3 working days after payment.
Q3: What's the payment?
A3: We accept T/T, Western Union, MoneyGram, Paypal
Q4: Can we visit your factory?
A4: Warmly welcome. Once we have your schedule, we will arrange
professional sales team to follow up your case.

Packaging & Delivery
Packaging Details:
Antistatic bag + Bubble bag + Foam box + Carton box
Delivery Detail:
1-3 working days after payment confirmed

Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk

Panel ModelBrandSizeResolution
AMS549HQ02Samsung5.5"720×1280
AMS520BQ12-0Samsung5.2"1080×1920
AMS497DX12-0Samsung5.0"720×1280
AMS163AN01Samsung1.63"320×320
AMS510CV02Samsung5.1"1080×1920
AMS510CV01Samsung5.1"1080×1920
AMS302AK03Samsung3.0"720×480
AMS353FD01-0Samsung3.5"480×800
AMS499QP89-0Samsung5.0"1080×1920
AMS529BY03Samsung5.3"1080×1920
SDC 1.63 320×320Samsung1.63"320×320
AMS499QP42-0Samsung5.0"1080×1920

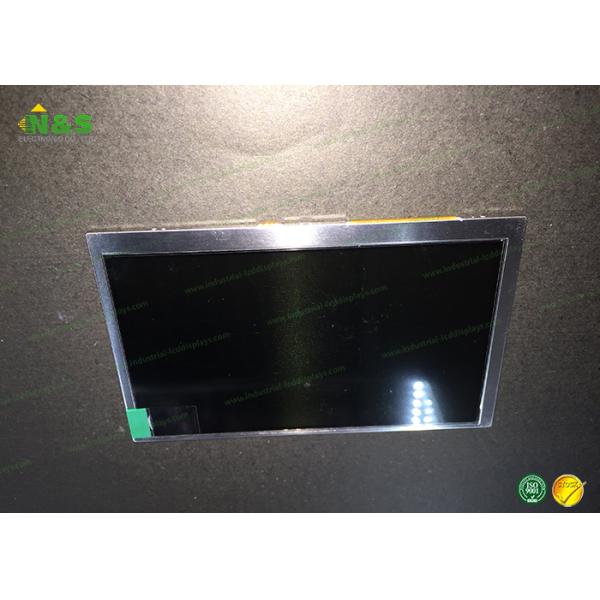

LMS700KF25-0 Picture
